Ethanol Flame Burner 680mm Intelligent Fireplace AF66

Transform any room into a warm, inviting haven with the AF66 3-Speed Ethanol Fireplace from Art Fireplace Technology Limited. As a professional intelligent fireplace manufacturer, we blend cutting-edge tech with elegant design to deliver a safe, efficient, and customizable flame experience—perfect for elevating your home or commercial space.

1. Key Features: Smart, Safe, and Customizable

  • 3-Speed Flame Control: Adjust flame intensity from low (gentle glow) to high (vibrant blaze) via remote or on-unit buttons, matching your mood or space needs.
  • Multi-Layer Safety Protection: Equipped with CO₂ detectors, heat sensors, burner level monitors, tank level alerts, and leak detectors. Automatically shuts down in abnormal operations to ensure safety.
  • Electronic Convenience: Includes automatic ignition, LED display (shows operating time/error messages with beeps), and a 12V adapter (compatible with 100-240V, 50-60Hz).
  • Durable Build: 3mm thick stainless steel top plate and Swedish medical-grade electric pump for reliable, long-term use.

2. Technical Specifications

Parameter Details
Product Model AF66 3-Speed Ethanol Fireplace
Length 68cm (26.77in)
Flame Width 42.6cm (16.77in)
Tank Capacity 7.8L
Net Weight 20KG
Power Output 2750 – 3750W
Fuel Consumption 0.3-0.6L/hour
Fuel Requirement 95-97% Bioethanol + Pure Water
Certifications CE / FCC / IC

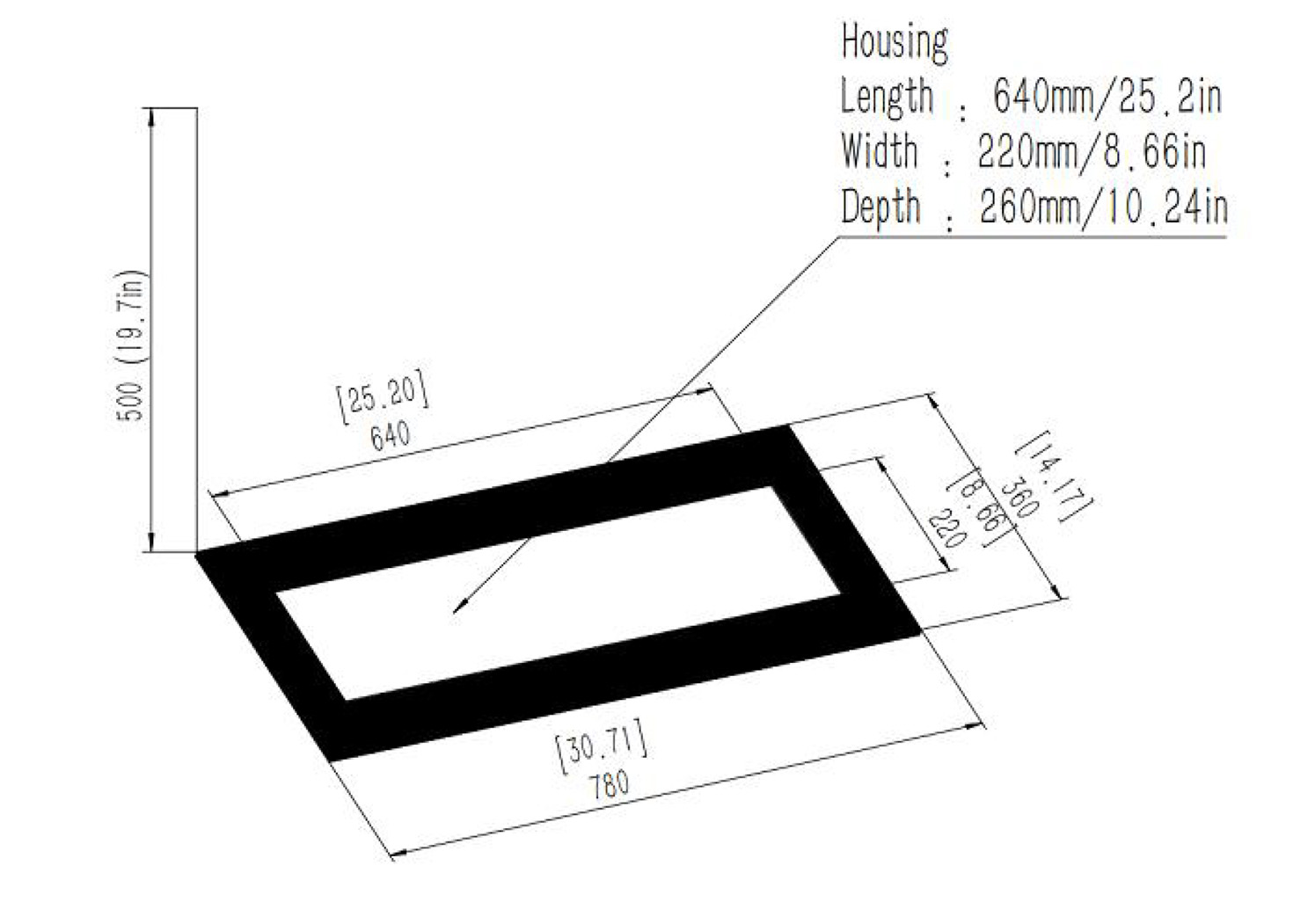

3. Safety Dimensions (Non-Flammable Materials)

To ensure safe operation, maintain the following minimum clearances:
  • Above the Fireplace: 50cm (19.7in)
  • Edges (Sides): 7cm (2.75in)
  • Back Side: 7cm (2.75in)
  • Housing Size: 640mm (L) × 220mm (W) × 260mm (D) (25.2in × 8.66in × 10.24in)

4. Easy Operation Guide

Step 1: Power Up

Connect the included 12V adapter to a 100-240V power source. Wait 3 seconds before operating.

Step 2: Fuel & Water Refill

Choose between automatic or manual refilling (use only 95-97% bioethanol and pure water):
  • Automatic Injection: Connect plastic tubes to external ethanol/water tanks. Press the corresponding button for 3 seconds (light turns blue). Pump stops automatically when tanks are full (light turns off).
  • Manual Injection: Press the tank door button/remote to unlock, open immediately, and fill. Close the door— it locks automatically after 5 seconds.

Step 3: Control the Flame

  • On/Off: Hold the on-unit button for 3 seconds or use the remote.
  • Flame Speed: Press “Flame High” (1→2→3) or “Flame Low” (3→2→1) to adjust.
  • Timer: Set 2h/4h/6h/8h auto-shutoff via the remote. Press the same timer button again to cancel.

    5. Why Choose AF66?

    • No Chimney Needed: Clean, smokeless bioethanol fuel eliminates the need for complex installations.
    • Energy-Efficient: Low fuel consumption (0.3-0.6L/hour) saves costs while providing consistent warmth.
    • Versatile Design: Fits modern, industrial, or traditional decor—ideal for living rooms, bedrooms, hotels, or cafes.
    • Global Compliance: Meets CE/FCC/IC safety standards, ensuring quality and reliability worldwide.

      Contact & Support

      Art Fireplace Technology Limited is committed to delivering top-tier intelligent fireplaces. For inquiries, installation help, or spare parts:
      • Official Websites: www.art-fire.com | www.art-fireplace.com
      • Email: info@art-fireplace.com
      • Address: FLAT/RM 705, 7/F, FA YUEN COMM BLDG, NO.75 FA YUEN STREET, MONG KOK, KLN, HK
      • Follow Us: Facebook (artfireplace) | YouTube (@artfireplace)

      FAQs

      Q:How about sample order?

      A:We accept sample order before production, it’s an necessary step before moving to successful cooperation, do not hesitate to contact with us for that.

      Q: Which surface treatment are the most common for metal parts?

      A: Matt Black Finish Top

      Q: We’re not familiar with the international transport, will you handle all the logistic thing?

      A: Definitely. Many years experience and long term cooperated forwarder will full support us on it. You can only inform us the delivery date, and then you will receive the goods at office/home. Other concerns leave to us.

      Q:What is the guarantee?

      A: All our products come with good condition, ready to use.
      We promises all clients 3 years long warranty time.
      If our products are damaged or can not be repaired, we will send you a same new one free for replacement. All spare parts are delivered to you free.
      All our products are of highest quality.
