How To Use Art Foreplace Automatic Ethanol Fires

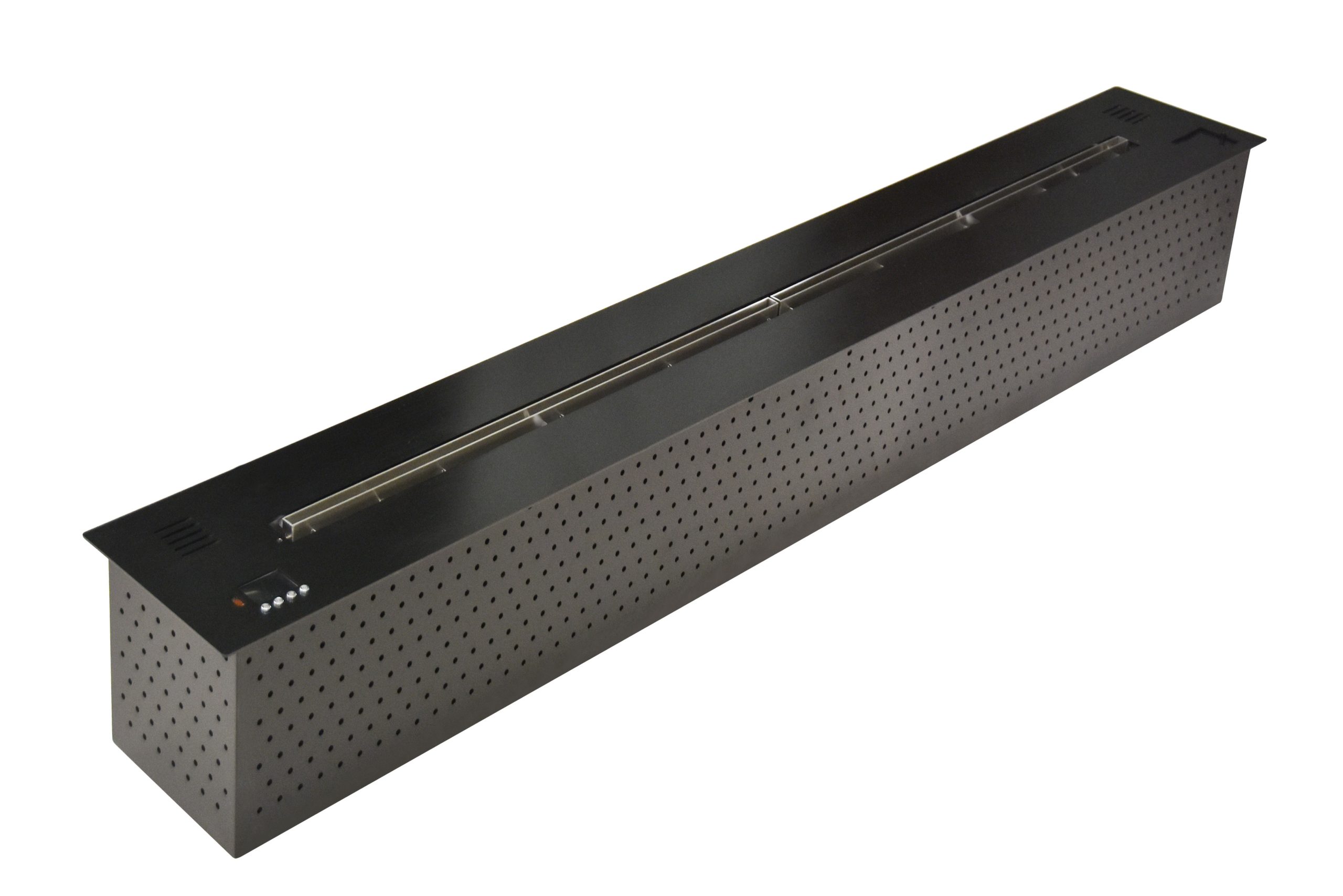

Equipment Components and Power Supply

Component No. Component Name Power Supply Parameters
1 Power DC 12V (Direct Current 12 Volts); AC 100-240V, 50-60Hz (Alternating Current 100-240 Volts, 50-60 Hertz)
2 Dry Contact     Yes
3 Heat Sensor     Yes
4 Level Sensor     Yes
5 Ignitor     Yes
6 Combustion Tray     Yes
7 Screen     LCD Screen
8 Door     /
9 Leak Sensor Tube     /


Operating Instructions

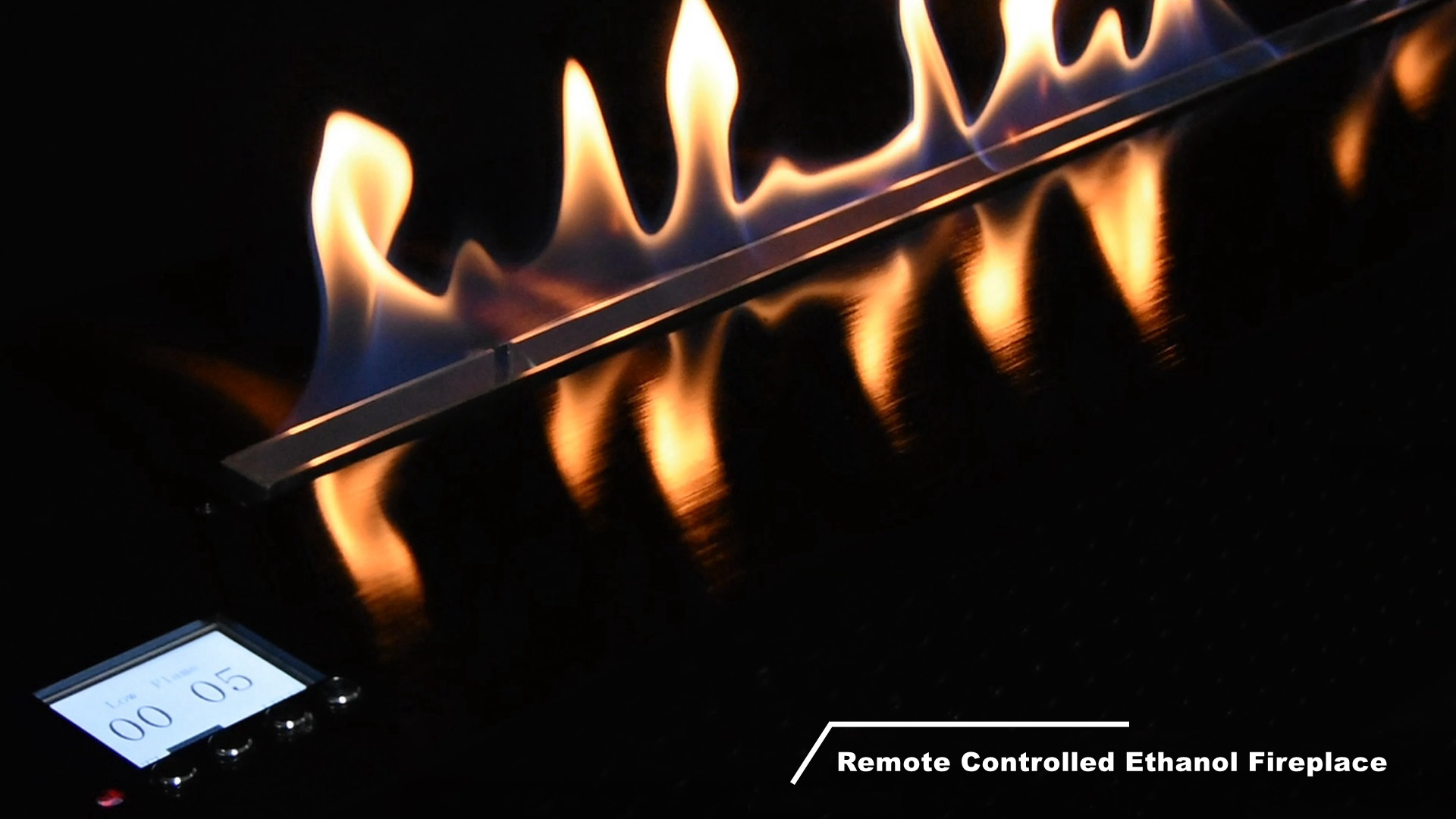

(1) Display Screen and Buttons

Button No. Button Name Function Description
1 Child Lock Button Press and hold for 3 seconds to lock/unlock the device
2 On/Off Button Press and hold for 3 seconds to start the device; press briefly to turn off the device
3 Tank Door Button Press to open the tank door
4 Timer Button Press to set the device’s operating time
– Screen LCD screen (Liquid Crystal Display) used to show device status and information

(2) Ignition Operation

The device can only be started/turned off using the On/Off Button on the device or the remote control. The remote control must be placed out of children’s reach.
Press and hold the On/Off Button on the device for 3 seconds, or press the On/Off key on the remote control. The pump will automatically supply fuel to the fireplace; automatic ignition will occur after a few seconds. If the first ignition fails, the system will attempt ignition a second time. If ignition still fails, please check the “Error Message” on the LCD screen and refer to the “Error Messages and Function Prompts” section.
Never add fuel directly to the burner.

(3) Shutdown Operation

The device can only be turned off using the On/Off Button on the device or the remote control. After shutdown, the pump will stop working. Do not leave the room until the flame is completely extinguished.
For safety reasons, the device cannot be re-ignited immediately after shutdown. You must wait until the fireplace temperature drops below 60°C (140°F); it is recommended to wait a few minutes before attempting to start the device again.
